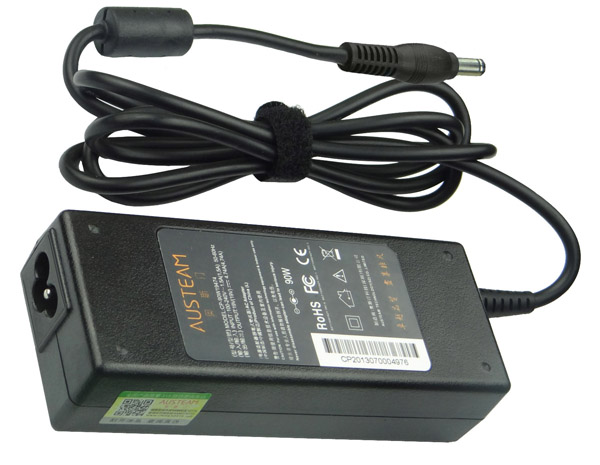

东芝 19V 4.74A 5.5*2.5mm

  • Features
  • Specification
  • Application
  • Typical models
  • Download

型    号：CP090-TO09
更新日期：2013.08.26
输入电压：AC90-264V 50/60HZ
输出电压：DC 19V
输出电流：4.74A
最大功率：90W
输出接头：Φ5.5×Φ2.5mm
效率：90%
输入AC接头：3pin
产品颜色：黑
规格尺寸：124*51*30mm
重量：352G
贮存温度：-15~50℃
工作温度：0~40℃
过压保护：有
过流保护：有
短路保护：有
过功率保护：有
制造厂家：深圳华巴源能科技有限公司& 奥斯汀科技（深圳）有限公司





Replacement For

For Toshiba

Liteon PA-1900-05                         Liteon PA-1600-05                          Liteon PA-1750-01

GATEWAY SA80T-3115                  GATEWAY 6500097                       GATEWAY 6500723

GATEWAY 6500714                       GATEWAY ADP-90SB                     TOSHIBA PA3165U-1ACA

TOSHIBA PA3097U-1ACA               TOSHIBA PA3032U-1ACA


-S201             2400-S202                       2400-S251                         2400-S252             2400-UJX


2405                     2405-S201                       2405-S202                         2405-S221             2410

2410-303              2410-304                         2410-304S                         2410-404               2410-414

2410-515              2410-603                         2410-703                           2410-A631            2410-A640

2410-A741            2410-CTX                        2410-S185                          2410-S203            2410-S204

2410-S205            2410-S206                       2410-SP203                        410-SP205             2410-W9X

2415-S205            2415-S206                       2415-SP203                        2415-SP203           2415-SP205

2415-SP205           2430                              2430-101                            2430-201              2430-301

2430-402              2430-703                        2430-A620                          2430-A740           2450-101

2450-114              2450-201                         2450-202                           2450-3DY            2450-401

2450-4PO             2450-5DY                        2450-A740                          2450-A750           2450-P40

2450-S103            2450-S203                       2450-S40                            2450-S402          2450-SP295

2450-TMG             2455                              2455-S3001                         2455-S305          2455-S306

2455-SP295
